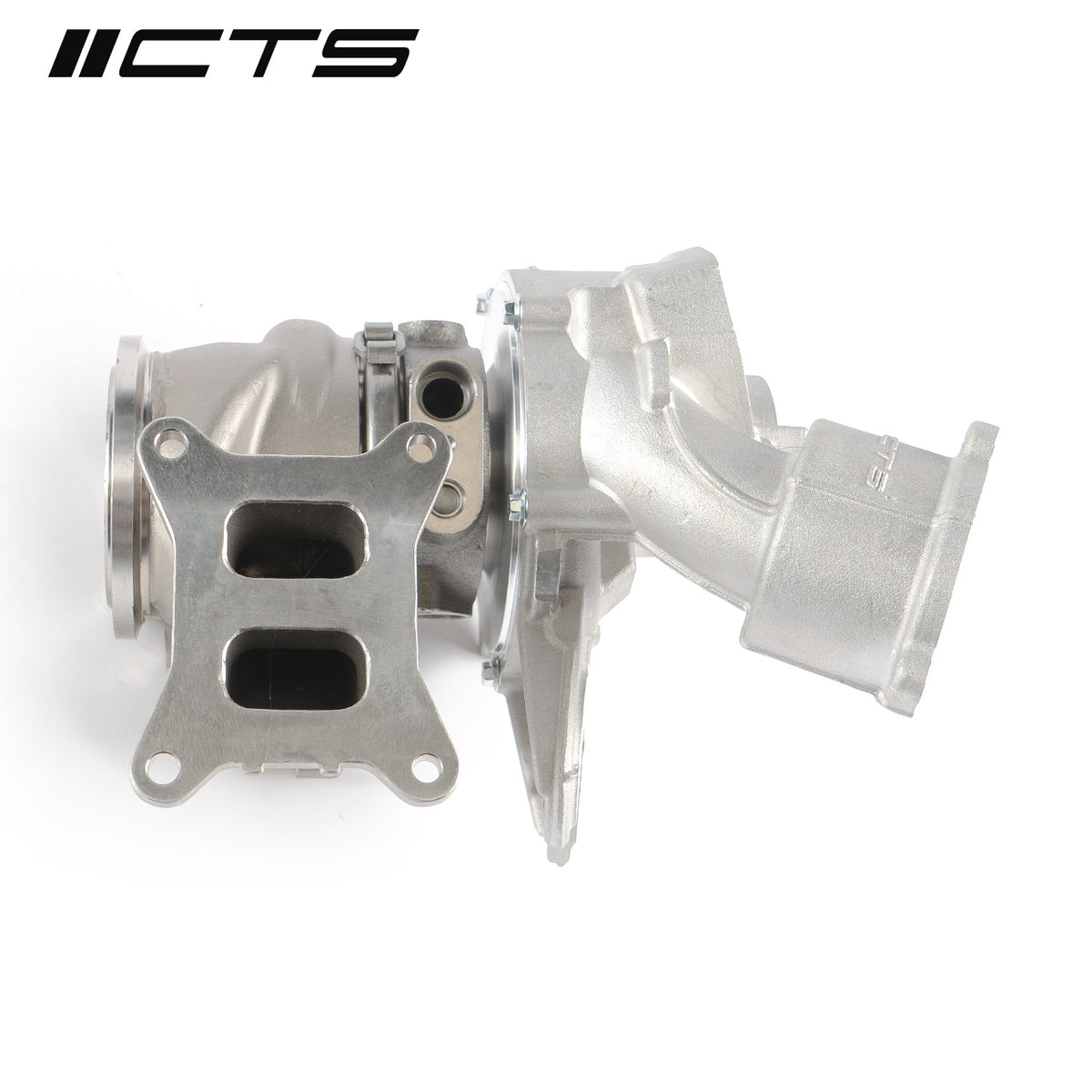

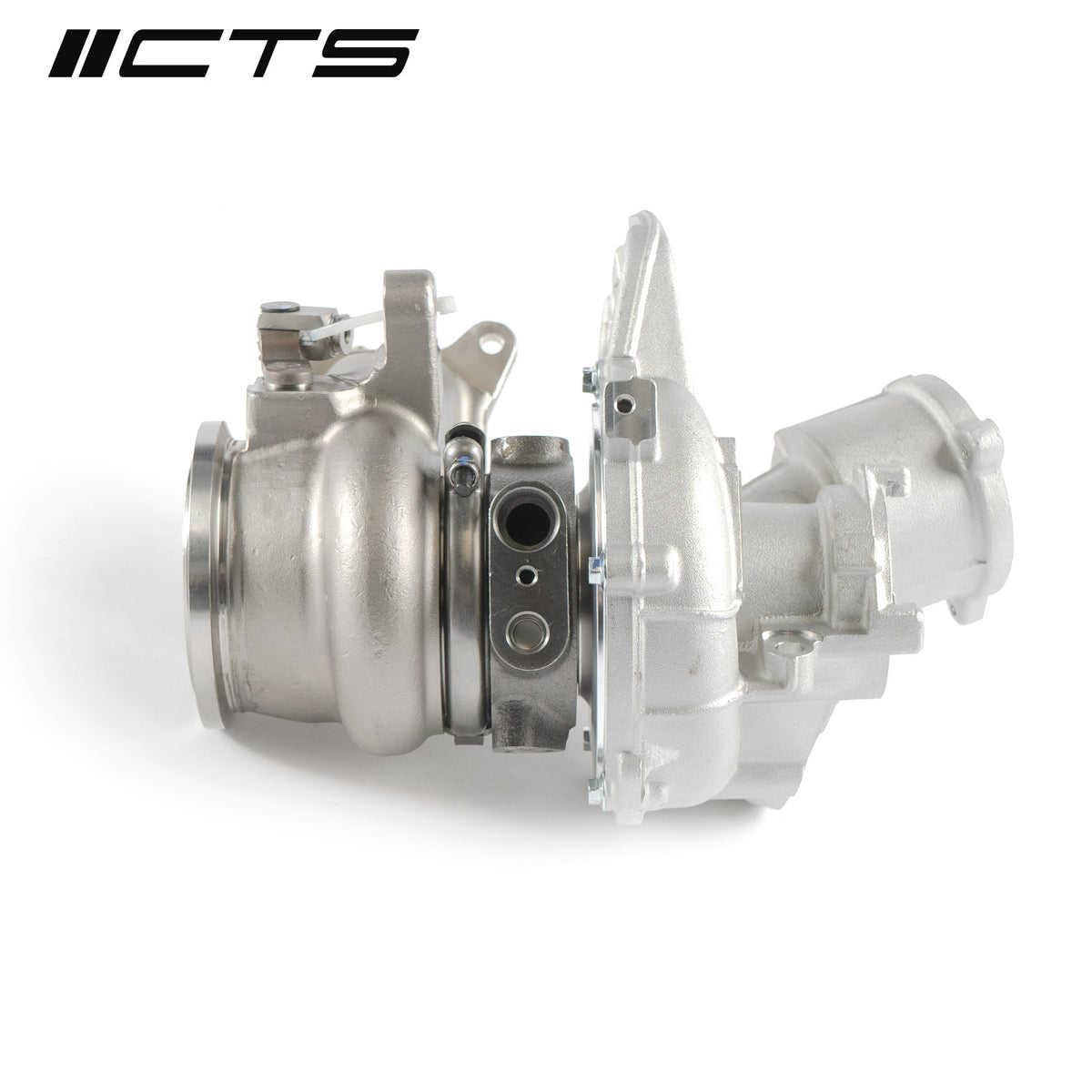

CTS Turbo JB-600 Turbocharger for VW Audi MQB

CTS Turbo's JB-600 is a premium journal-bearing hybrid turbo with a stainless steel exhaust housing, built specifically for MQB vehicles as a budget-friendly direct-bolt-on upgrade over a factory IS12, IS20 or IS38.

Built for fast spool and torque

The goal was a drop-in turbo with fast spool, a massive torque curve and reliable performance. CTS kept the journal-bearing CHRA from the popular IS38 and reworked it for larger wheels: thrust bearings and thrust collars increased by 2mm for the extra load, and oil passages opened up by 0.72mm for the most efficient hydrodynamic wedge in operation. Tested worldwide across altitudes and climates, it delivers roughly 600 crank hp, around 520-530whp on E85 and 430-460whp on pump 93 octane. It is built for the street with a focus on fast spool and solid mid-range. Keep boost within 25-28psi (less if limited by fueling or a stock engine) and do not exceed that range, as efficiency drops.

Features

• Perfect street turbo upgrade with strong spool and mid-range response
• Journal-bearing direct-fit CHRA (compatible with all factory oil and coolant lines)

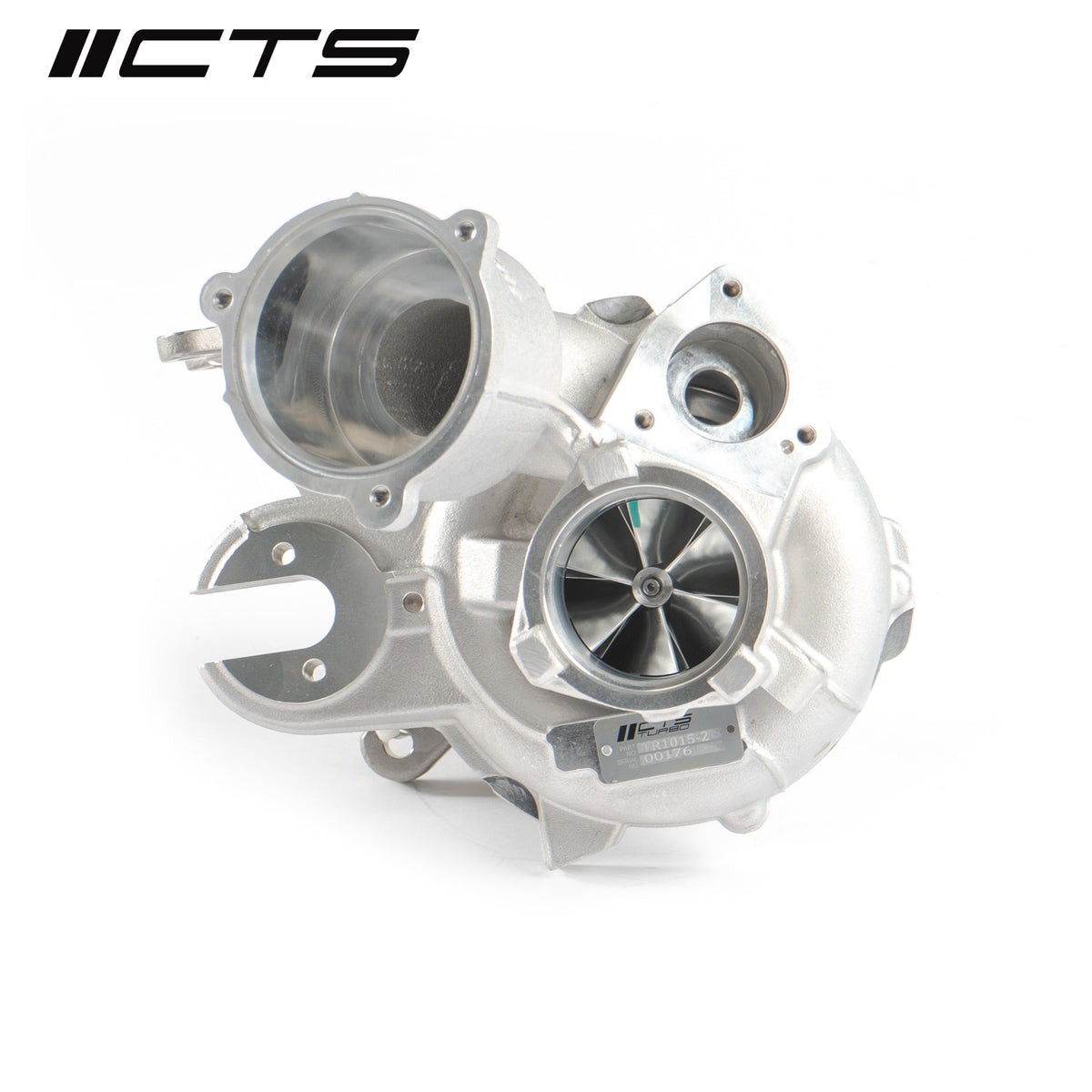

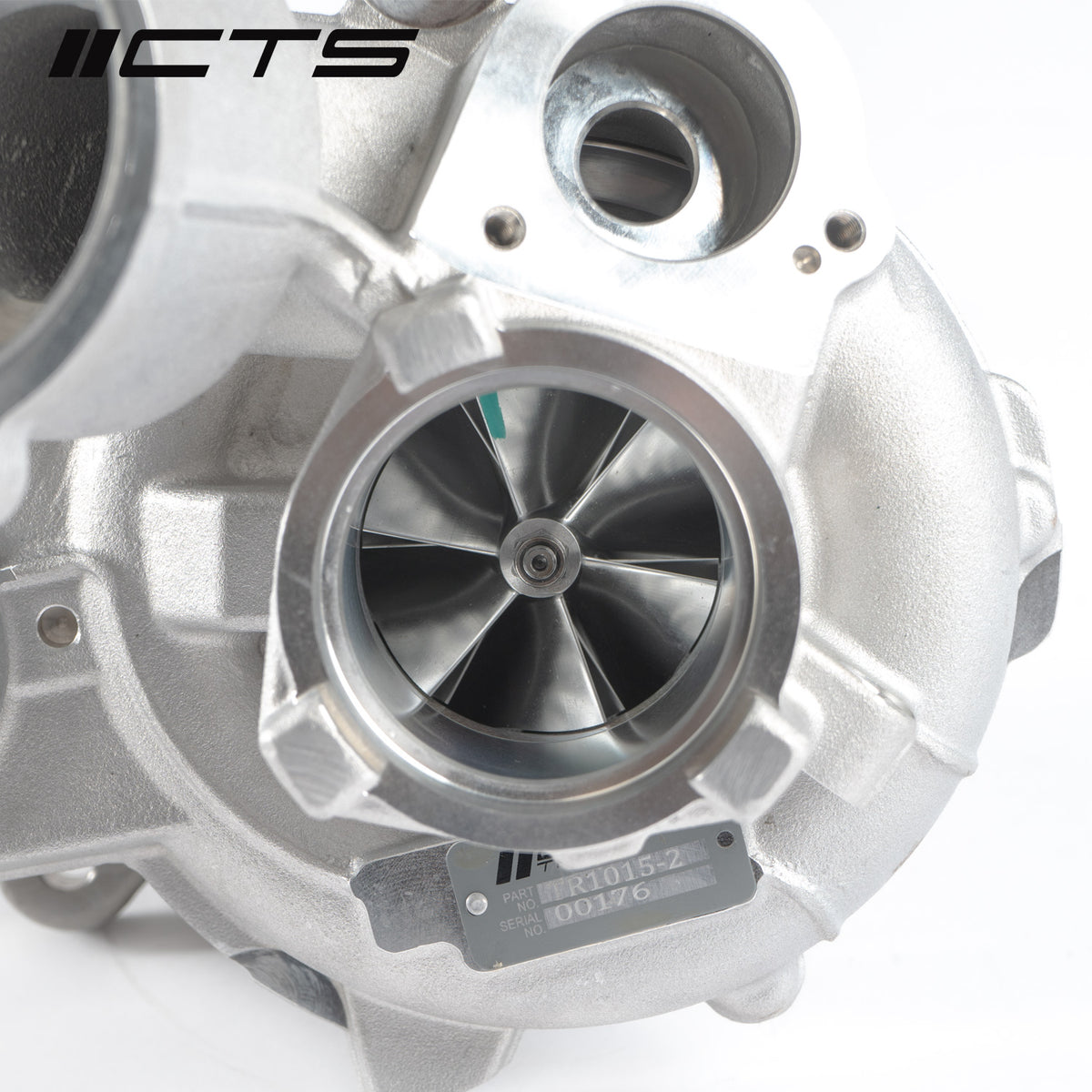

• Billet reverse-rotation compressor wheel, 53.1mm inducer, 71mm-76mm exducer with extended tip (6+6 blade)

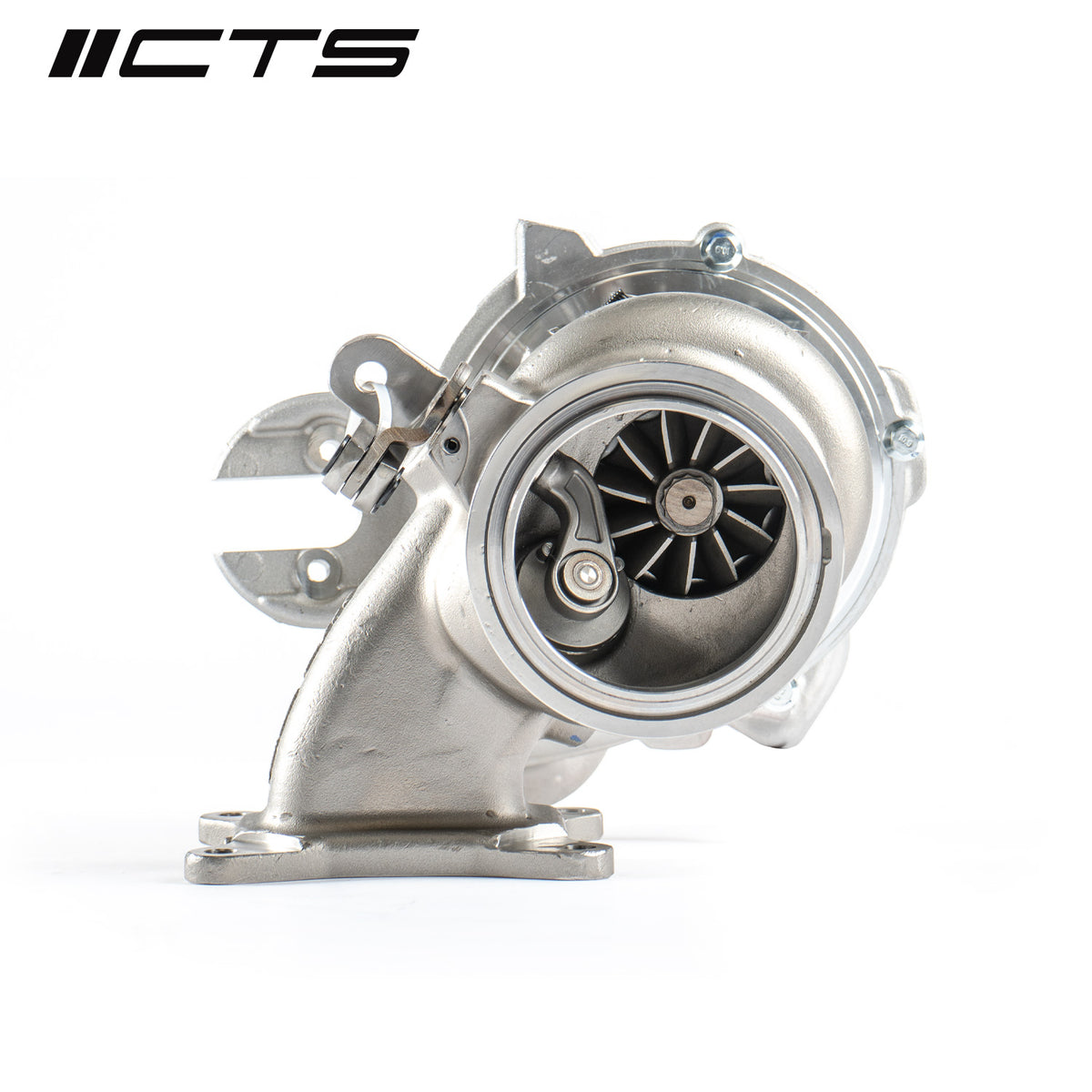

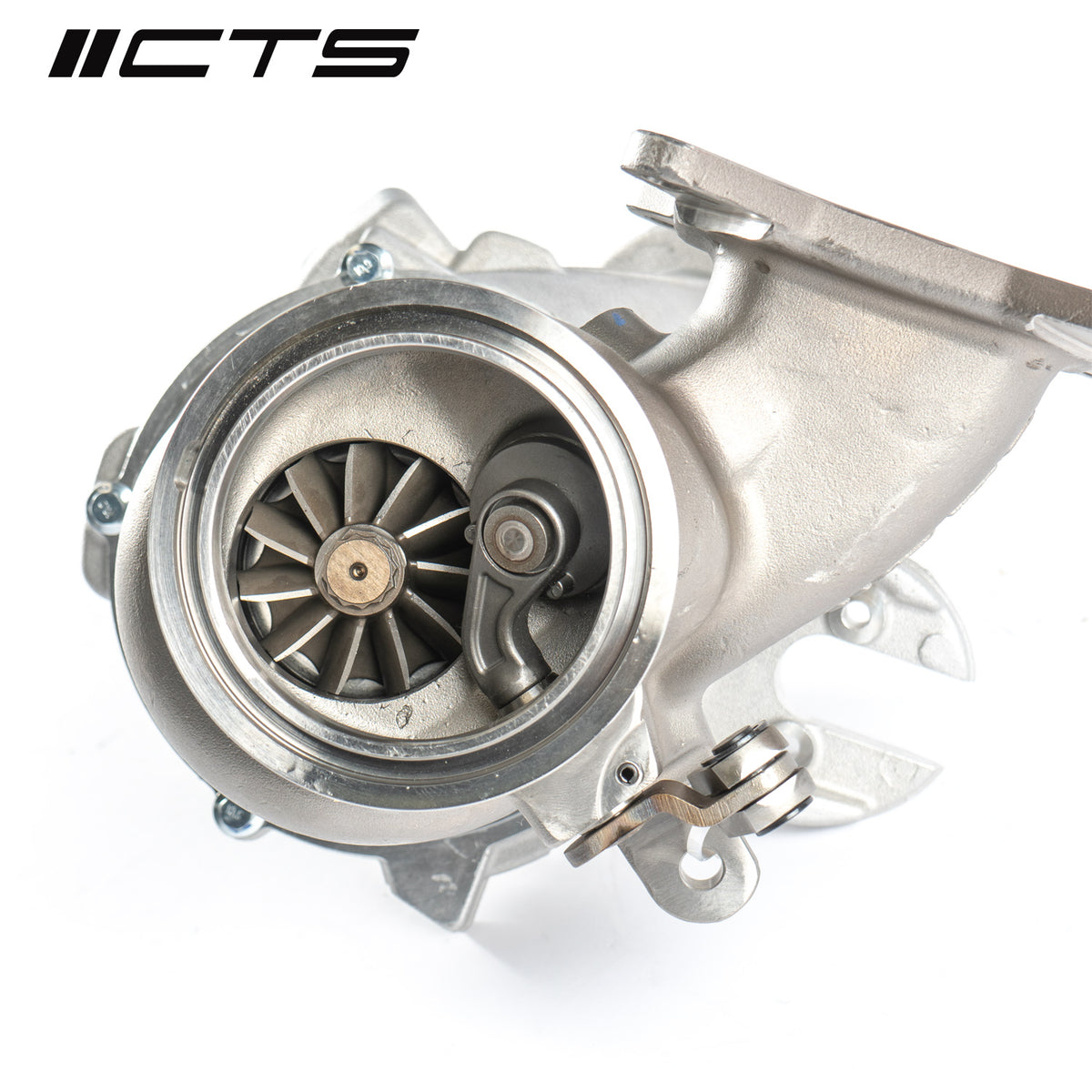

• Inconel TD06SL2 reverse-rotation turbine wheel, 54mm exducer, 60mm inducer (11 blade)

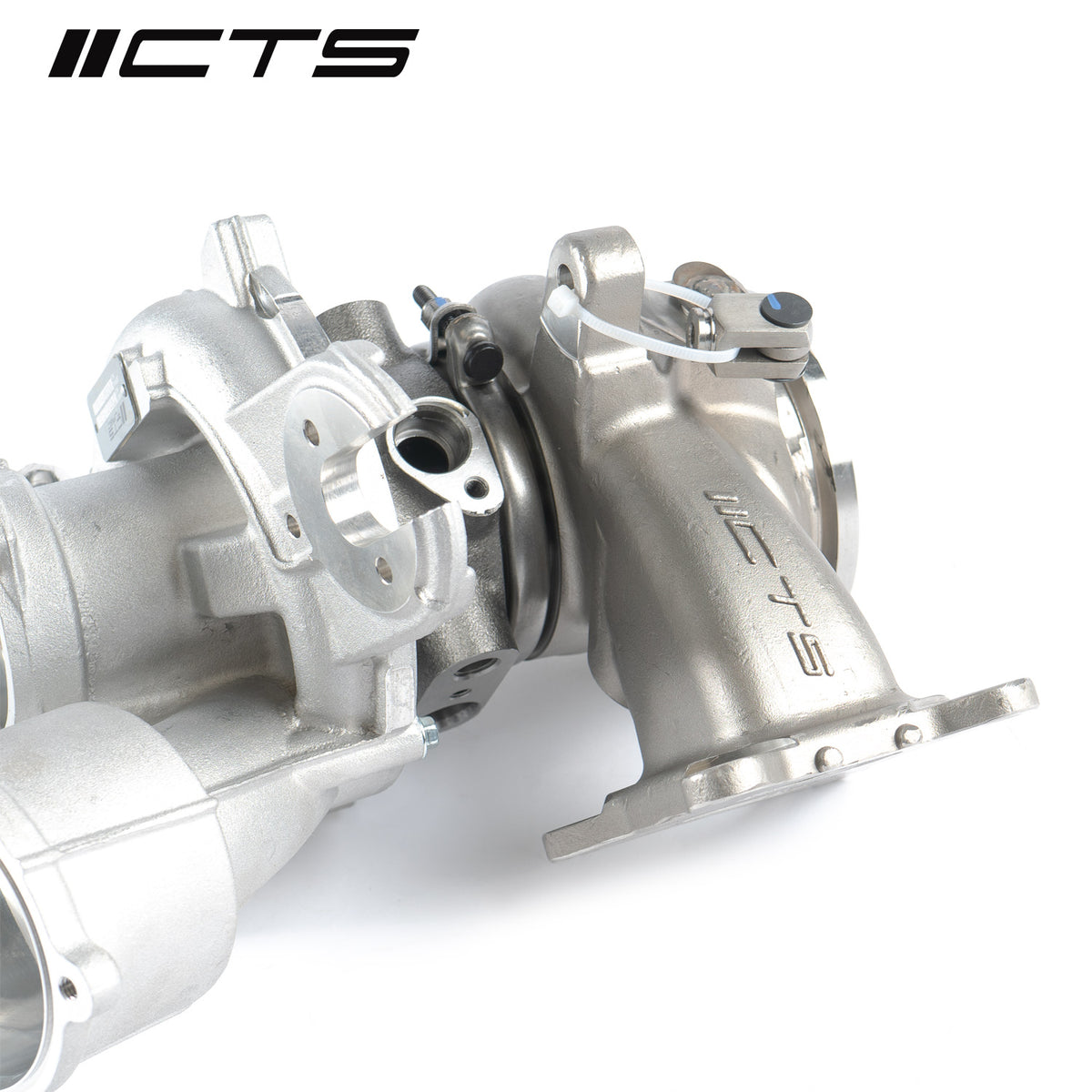

• Stainless steel proprietary turbine housing, made precisely for factory fitment
• VSR balanced to OE tolerances
• Compatible with most hybrid-turbo tuning solutions (United Motorsport, Eurodyne, COBB)
• Compatible with OE or replacement wastegate actuators
• Compatible with OE or aftermarket turbo inlets and outlets; a 2.5" turbo outlet pipe is recommended

Fitment — all MQB-based EA888.3

• 2015-2019 VW Golf/Sportwagen/Alltrack
• 2015-2020 VW GTI
• 2015-2019 VW Golf R
• 2019-2023 VW Jetta GLI
• 2018-2021 VW Arteon
• 2015-2020 Audi A3
• 2015-2020 Audi S3
• 2015-2020 Audi TT
• 2015-2020 Audi TTS

ROW models can vary.

Required parts (not included)

• Performance downpipe
• Performance air intake
• Performance intercooler
• Factory or aftermarket wastegate actuator
• Software tuning for hybrid turbo
• Installation hardware for the factory turbocharger (listed below)

Recommended parts (not included)

• 2.5" turbo outlet pipe
• MPI kit and upgraded fuel pump (confirm with your tuner)
• HPFP upgrade (confirm with your tuner)
• High-flow exhaust

Always follow the proper procedure for checking and adjusting the wastegate actuator; recommended voltage 3.4V-3.6V. Installation must be performed by a qualified technician — always pre-fill the turbo, replace engine oil and filter, and follow proper break-in. Wastegate actuator and turbo outlet fitting not included; use the same install kit as the factory turbo.

Hardware and gaskets required for installation

• 06L253039A — turbo inlet gasket
• 5Q0253115B — turbo outlet seal
• WHT007210 — turbo mount nuts (x4)
• N90067202 — turbo oil line o-ring (x2)
• WHT006112 — turbo oil line gasket
• WHT006113 — turbo oil line gasket
• WHT006114 — coolant hose o-ring
• WHT006124 — coolant hose o-ring
• WHT005558 — coolant hose o-ring

Ships from our Vancouver shop — KORE SPEED is proudly Canadian-owned, with no surprise cross-border duties for Canadian buyers. Questions on fitment? Email support@korespeed.com.
