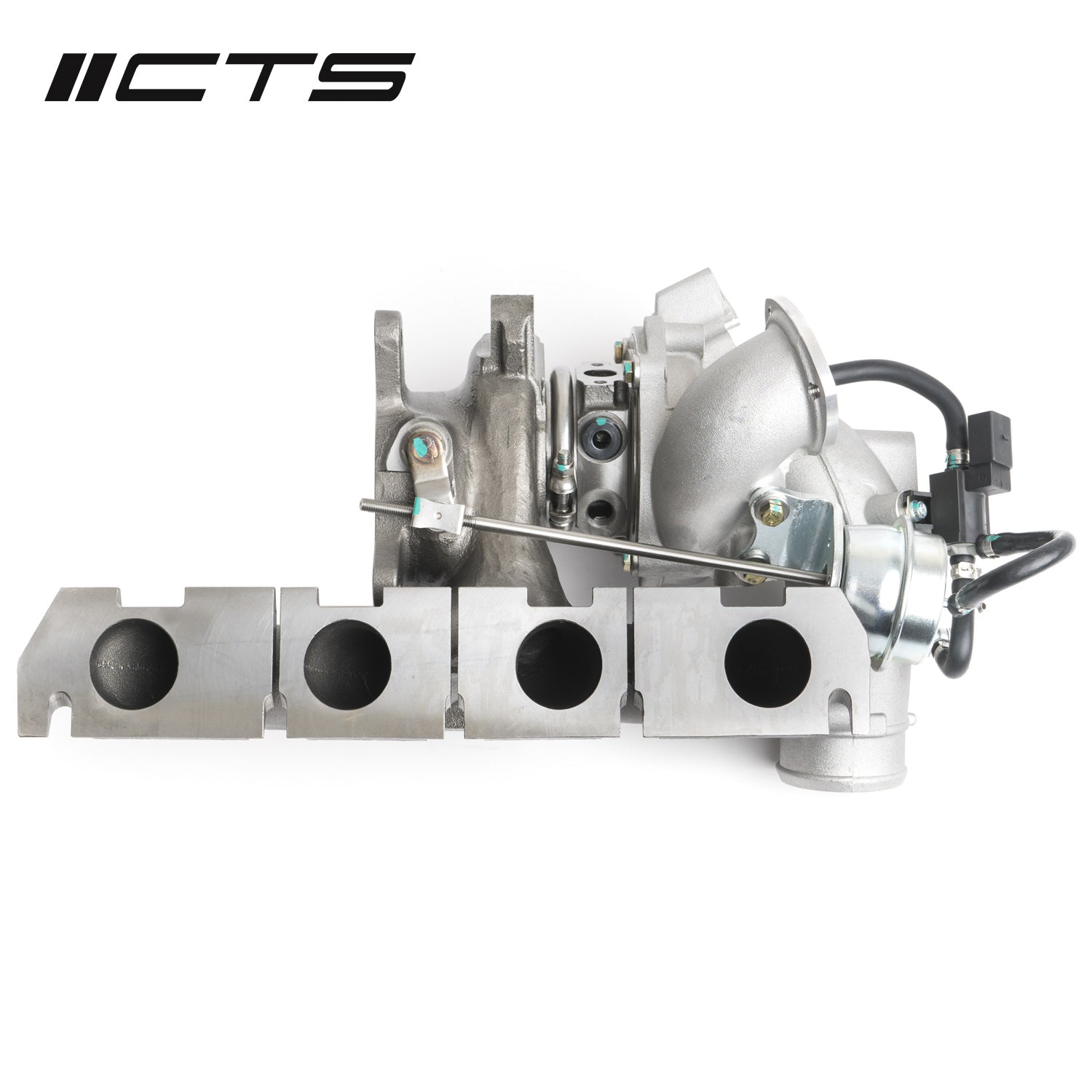

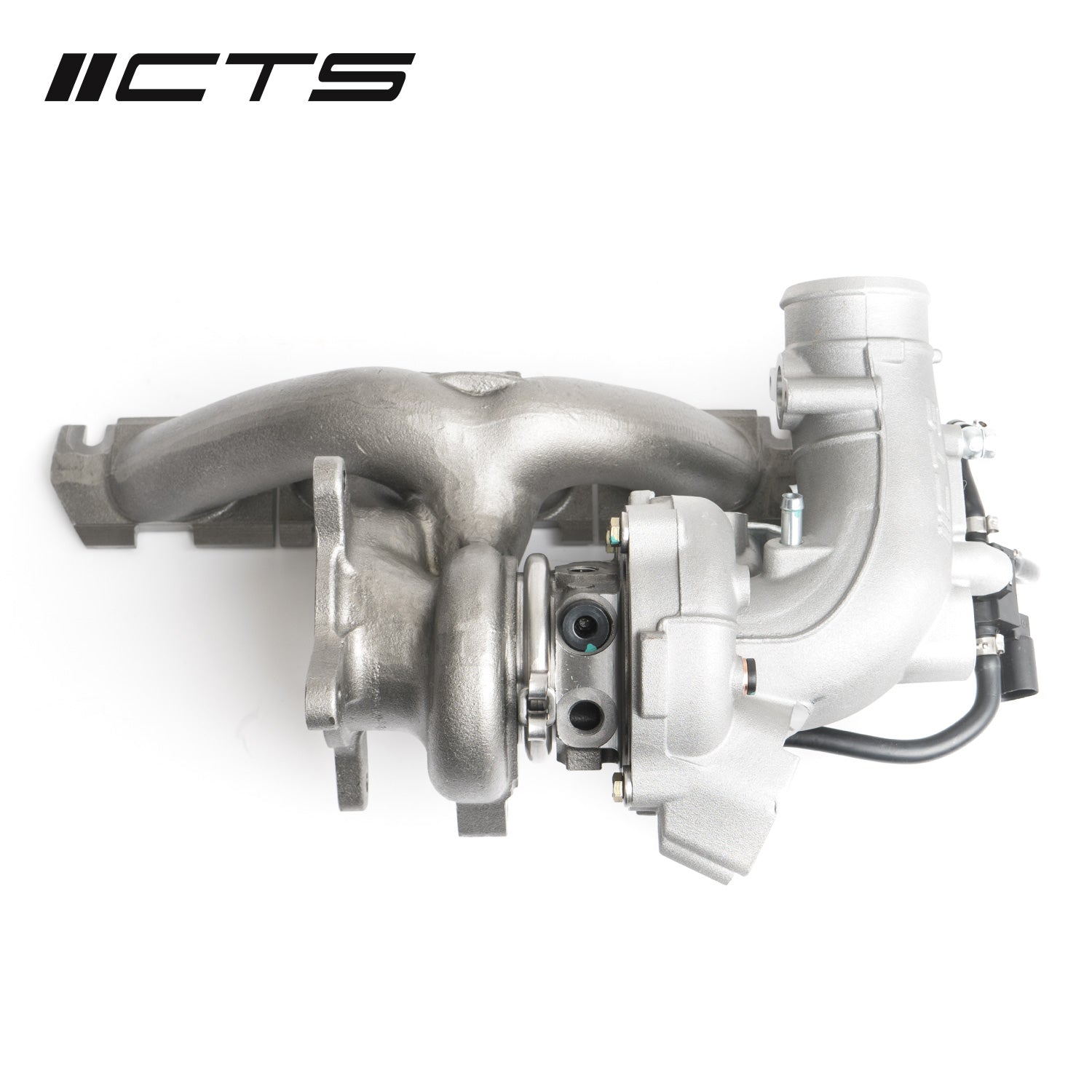

CTS Turbo K04 Upgrade for FSI TSI Engines

CTS Turbo's K04 upgrade for 2.0T FSI/TSI transverse engines is engineered the right way: the compressor cover and exhaust housing are built to work with the larger K04 CHRA as intended — not a big K04 CHRA dropped into a small factory-spec housing.

Best bang for the buck

Beware K03/K04 builds that do not flow properly for the larger turbine wheel; they can lead to poor performance and premature failure. CTS's high-quality castings are CNC-machined to replace your factory turbo with no extra parts — all you need is an ECU tune and a performance downpipe. With proper tuning and supporting mods, this turbo supports 350HP/360TQ.

Features

• CTS-spec K04 CHRA with heavy-duty thrust bearings
• 46.38/56.1mm standard K04 compressor wheel (MFS — machined from solid)

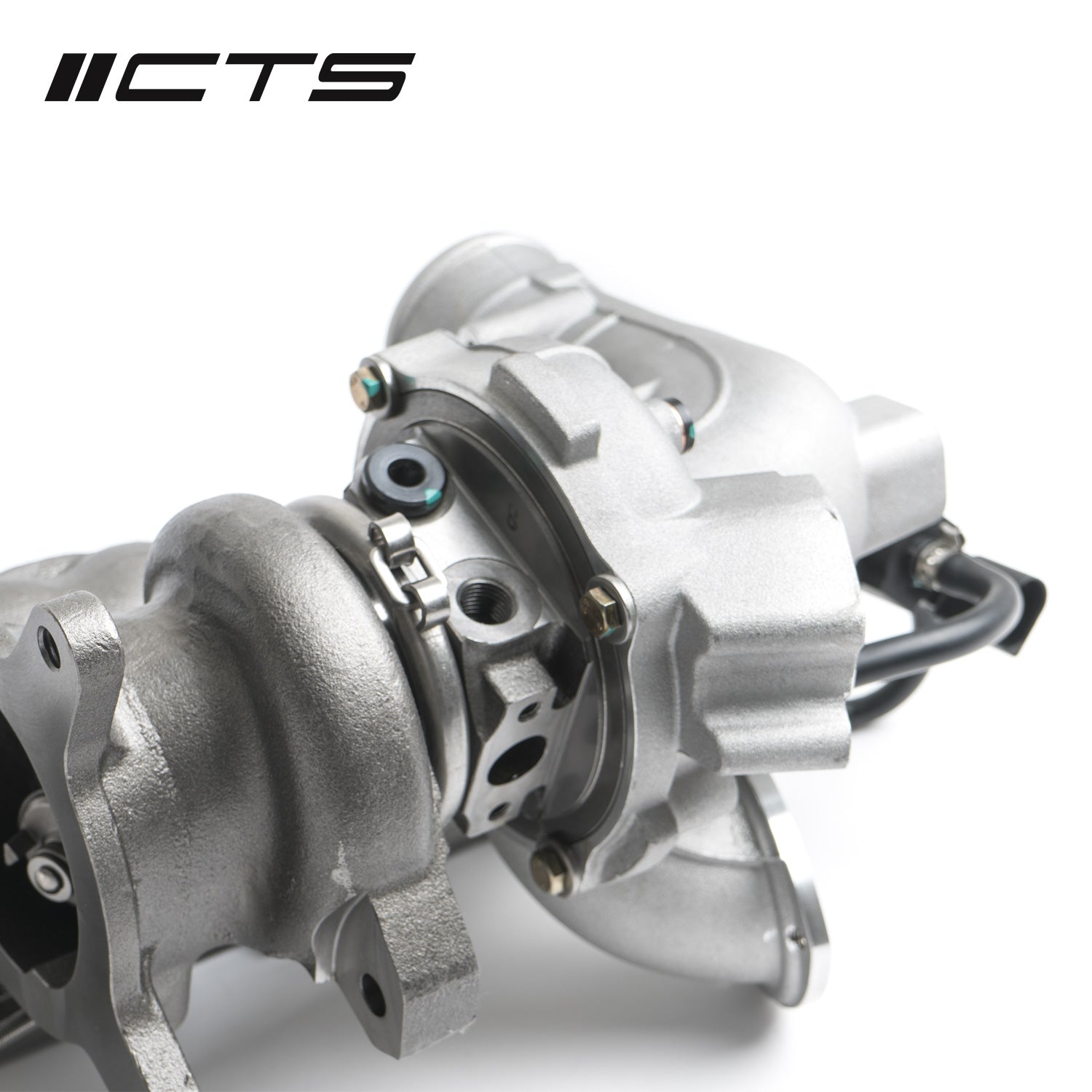

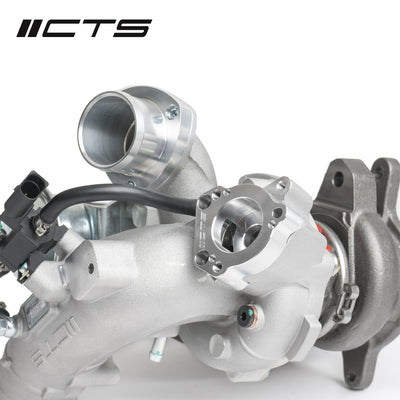

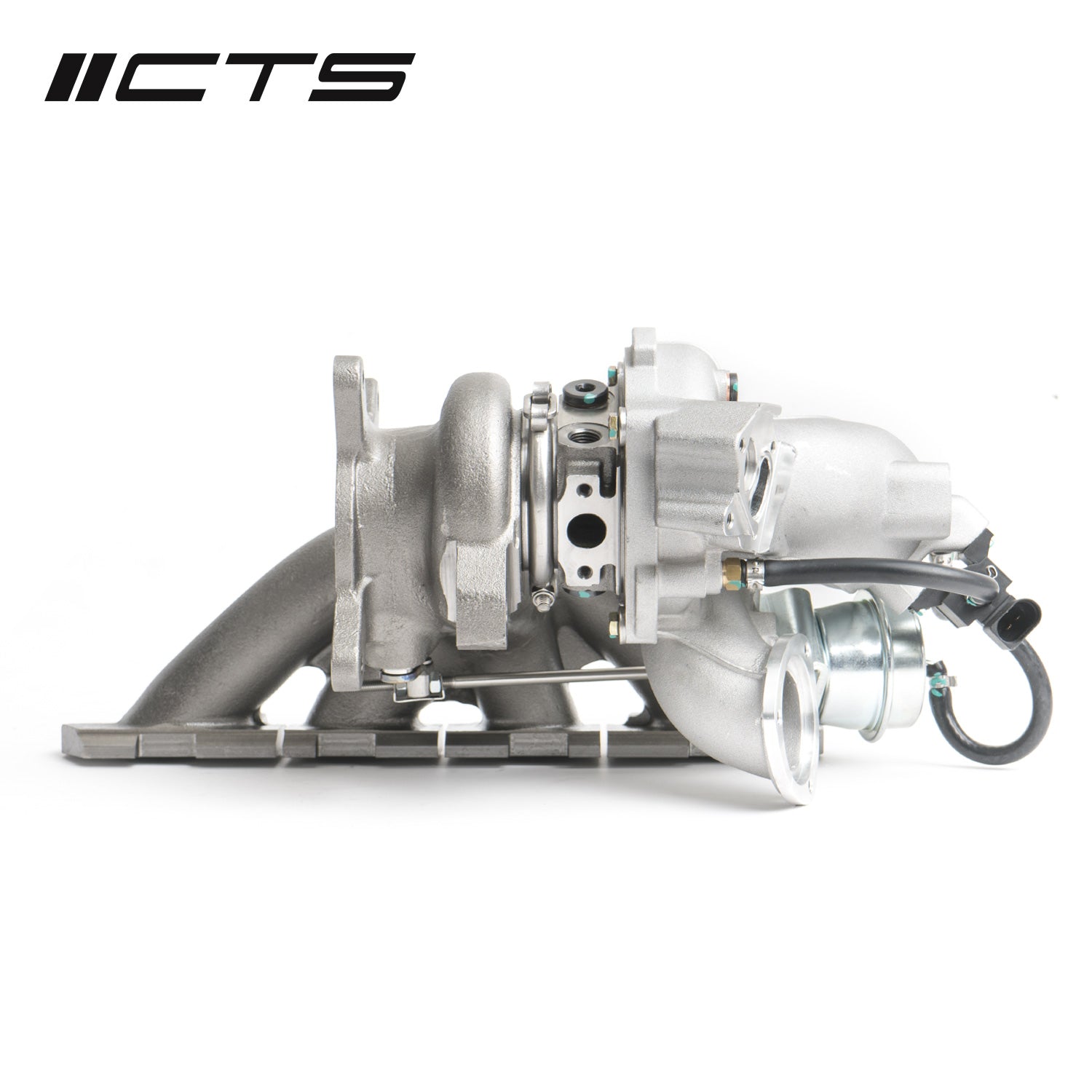

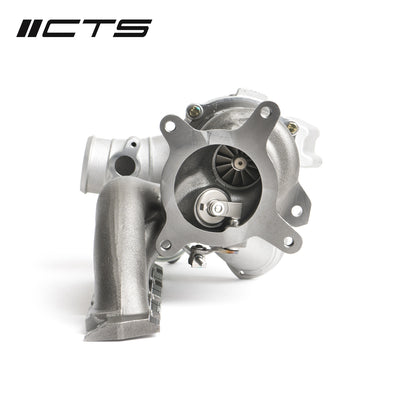

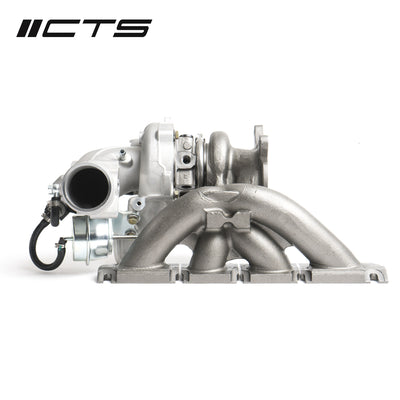

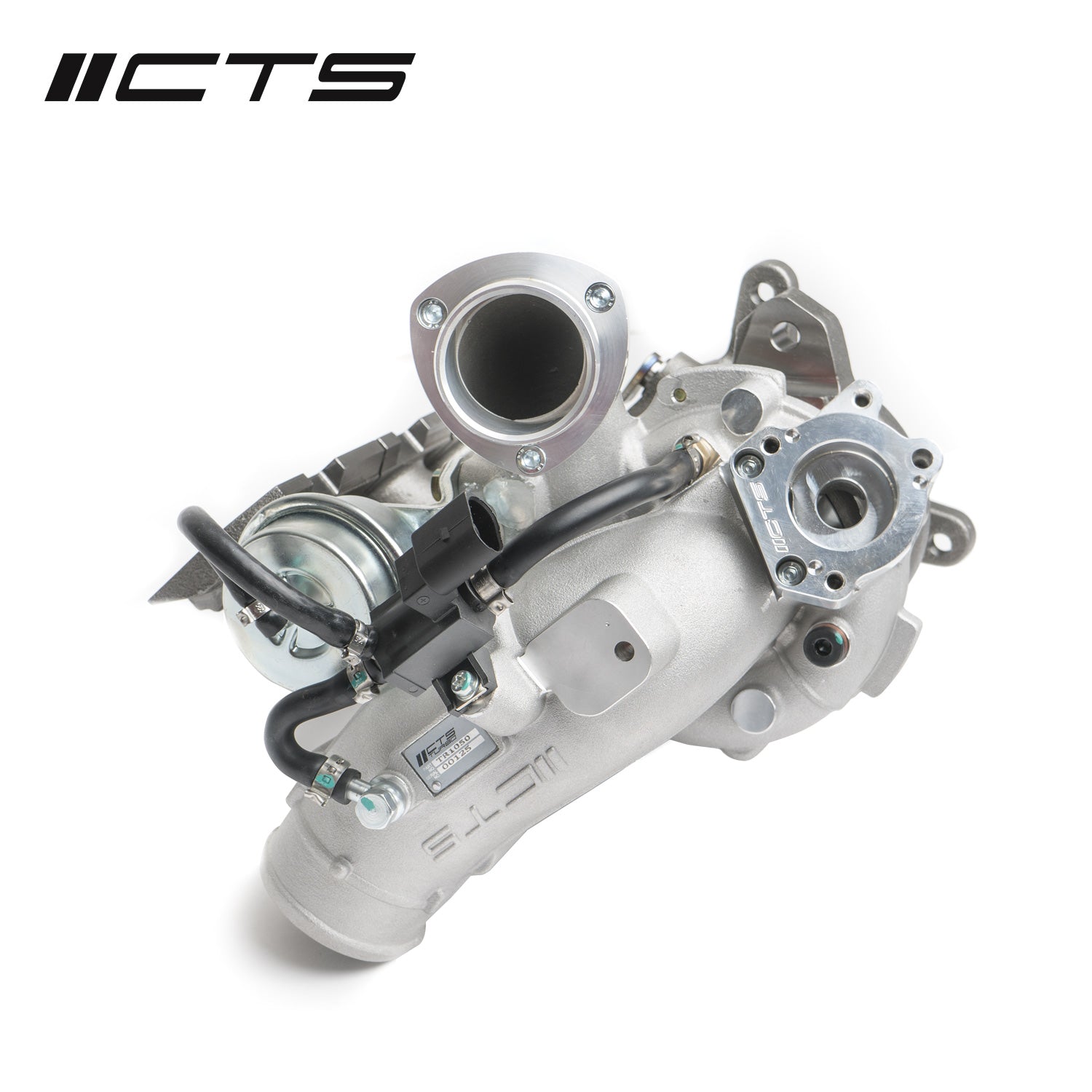

• K04-specific compressor and turbine housing — NOT a hybrid
• OEM+ manufacturing tolerances
• VSR high-speed balanced
• Direct-fit factory replacement

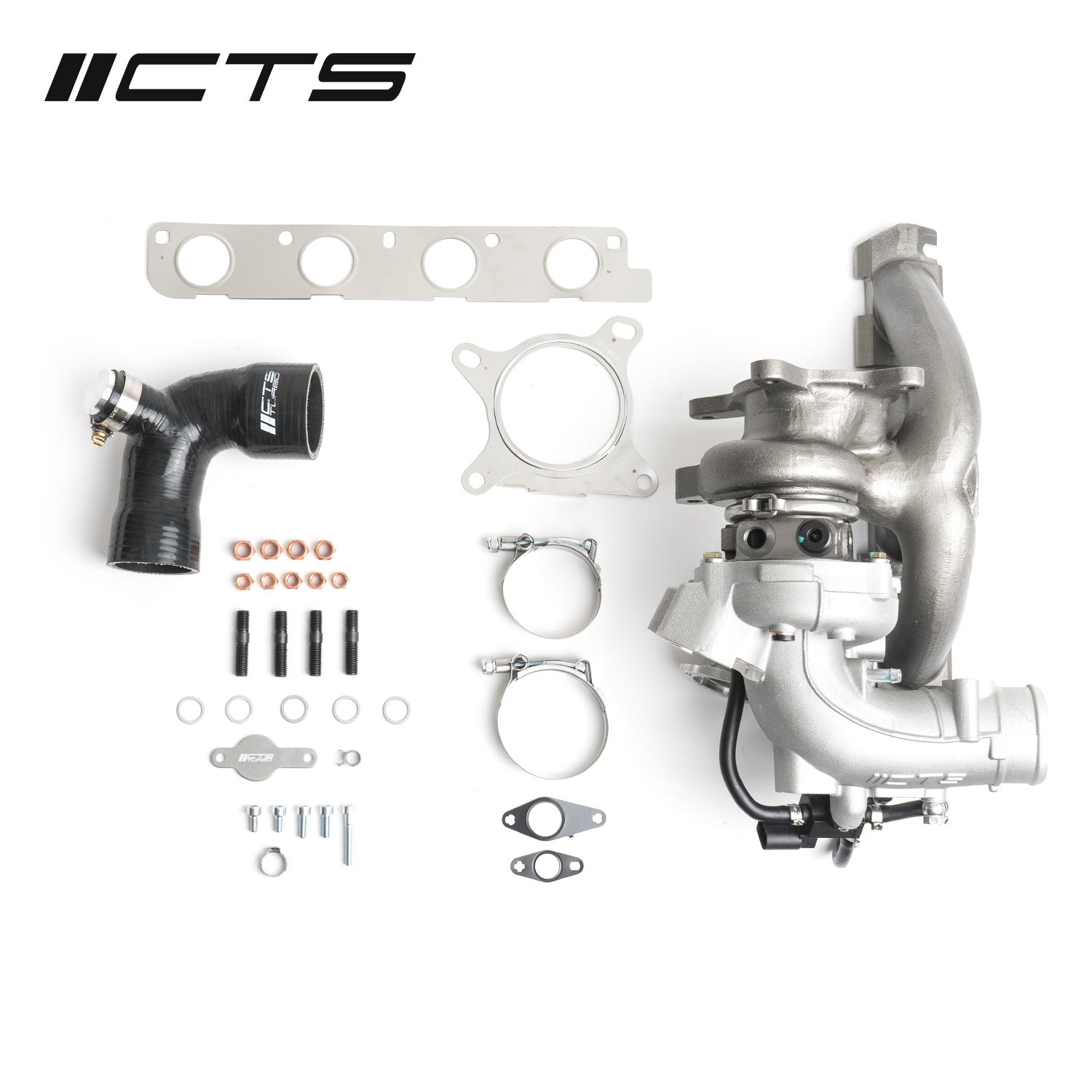

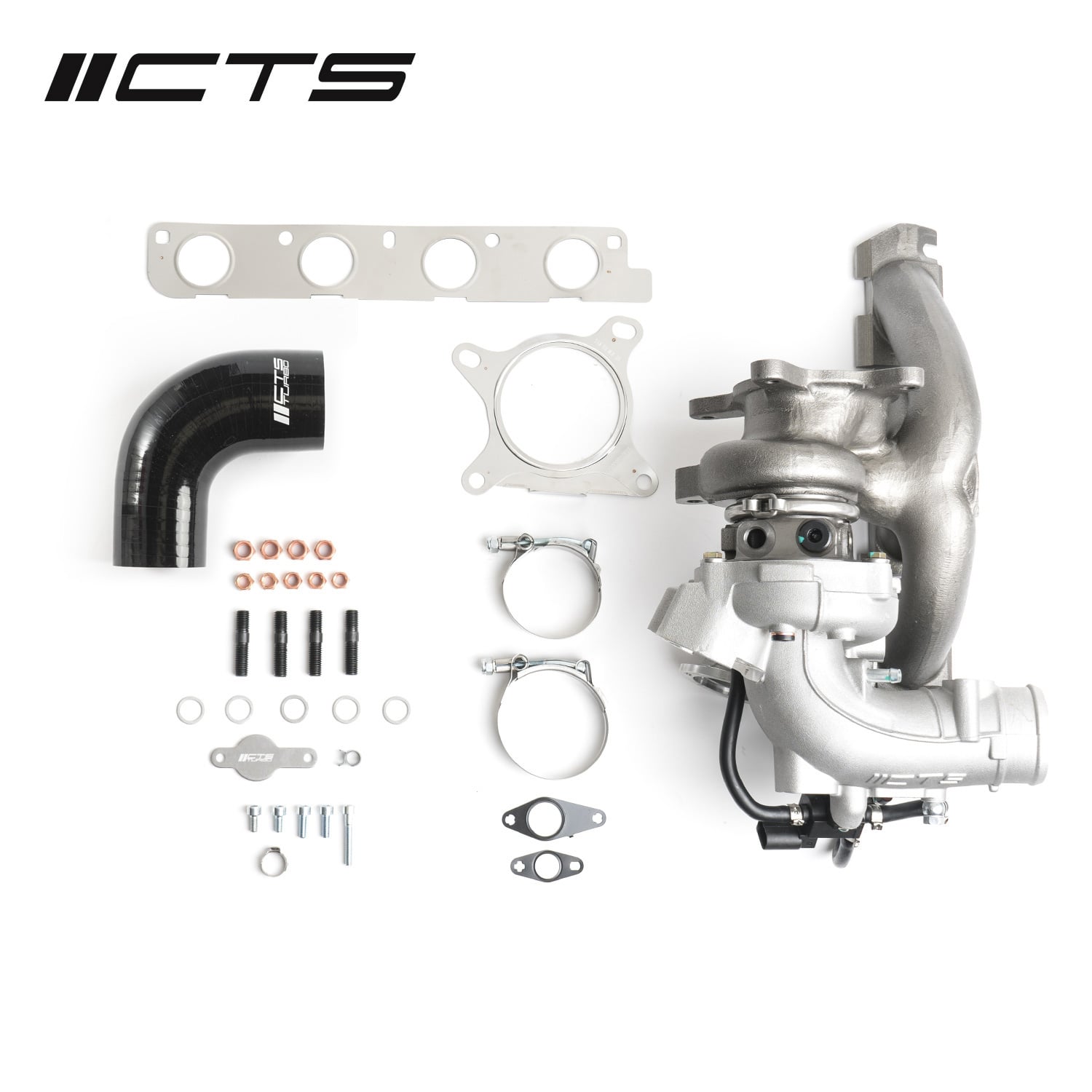

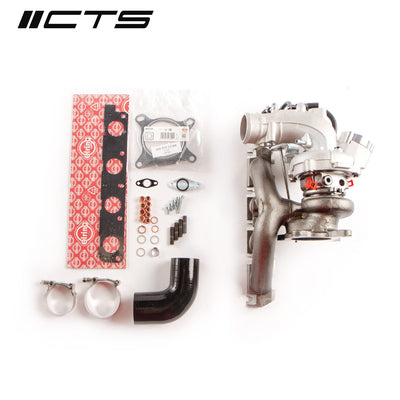

• OEM installation kit included
• Compatible with any K04-specific tune
• Compatible with the factory turbo outlet pipe (FSI and TSI); not compatible with aftermarket K03 outlet pipes

Fitment — EA113 2.0T FSI (timing belt)

• Audi A3 2006-2008 BPY
• Audi TT 2008-2010 BPY
• VW Golf GTI 2006-2008 BPY
• VW Jetta GLI 2006-2008 BPY
• VW Passat 2006-2008 BPY
• VW EOS 2006-2008 BPY

Fitment — EA888.1 2.0T TSI (timing chain)

• Audi A3 2008-2013 CCTA/CBFA
• Audi TT 2011 CCTA/CBFA
• Audi Q3 2015-2017 CCTA/CBFA
• VW CC 2009-2017 CCTA/CBFA
• VW Golf GTI 2008-2014 CCTA/CBFA
• VW Jetta GLI 2008-2012 CCTA/CBFA
• VW Passat 2008-2010 CCTA/CBFA
• VW EOS 2008-2016 CCTA/CBFA
• VW Tiguan 2008-2017 CCTA/CBFA

Fitment — EA888.2 2.0T TSI (timing chain w/ valvelift)

• Audi TT 2012-2015 CCTA/CBFA (PCV adapter required)

ROW vehicles: please confirm fitment with your CTS Turbo dealer.

Additional parts required

• K04-specific software tuning
• CTS Turbo or other performance downpipe

Additional parts recommended

• CTS Turbo cold air intake
• CTS Turbo direct-fit intercooler kit
• CTS Turbo high-flow turbo outlet pipe (EA888 only)
• S3 fuel injectors and HPFP upgrade (EA113 engines only)

Ships from our Vancouver shop — KORE SPEED is proudly Canadian-owned, with no surprise cross-border duties for Canadian buyers. Questions on fitment? Email support@korespeed.com.
