Keep Oil Out of your N55 BMW Air Intake System!

It's no secret that BMW turbo motors can suffer from oil control problems causing oil to blow through and coat the intercooler and charge piping, gunking up intake valves and the VANOS system, lowering the effective octane, and generally degrading engine performance. The higher your boost levels the more apparent these problems become.

The solution to this problem has finally arrived. The BMS oil catch can. While there are other catch cans on the market they all fall short in various areas. Some are mounted on the hot/turbo side of the motor preventing proper vapor condensation. Others utilize hoses that are too small and runs that are too long to allow proper PCV ventilation causing internal motor/ring sealing issues. Some have insufficient or no internal baffle system while others have internal baffles systems that are too restrictive. Some even bypass the PCV system all together venting crankcase gas and odor to the atmosphere. Most are simply repackaged oil catch cans from smaller / lower power motors shoehorned into place in the turbo BMW engine bay.

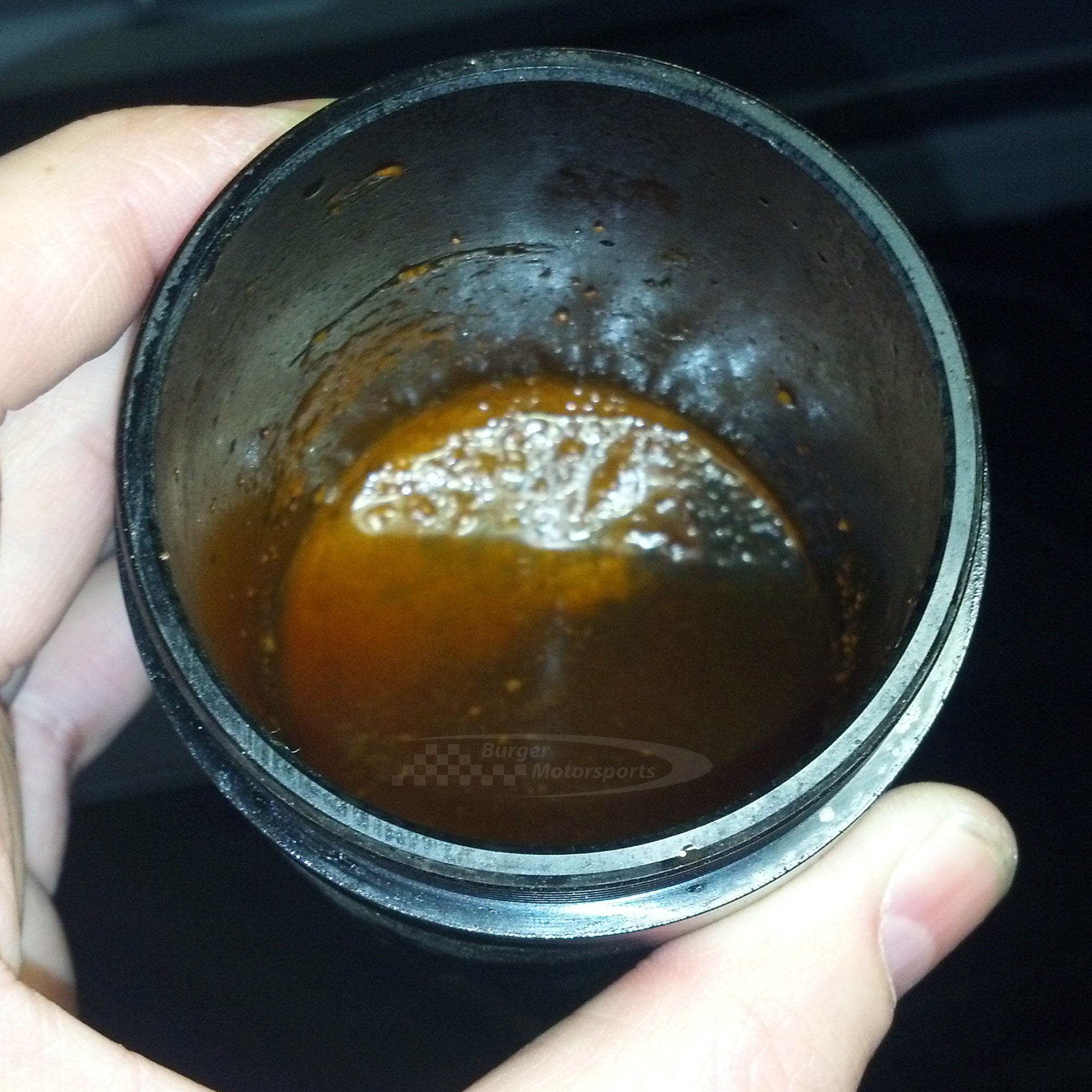

To solve these problems BMS designed their oil catch can kit from the ground up specifically for the turbo BMW application. It features 100% CNC machining with zero welding for a precision fit and long life. The can itself is guaranteed for the life of the vehicle. The hoses exceed the OEM PCV piping in diameter and that flow rate is maintained throughout the entire oil catch can ensuring no excessive crankcase pressure buildup. The BMS OCC retains the factory fully closed loop PCV operation preventing any PCV vapor from leaking to the atmosphere. The mounting locations are selected to minimize the line length, allow more efficient operation, and retain a stealth look. Install takes around 20 minutes, includes all required hardware, and is 100% reversible. Simply unscrew the base of the can or use the drain plug to safely dispose of captured oil with the rest of your used motor oil during oil changes. Made in USA.

Vehicle Fitment

BMW 1 Series
• 2016-2019 F20 F21 M135i (N55 engine)

BMW 2 Series
• 2014-2016 F22 Coupe 235i (N55 engine) Does not fit N55 M2

BMW 3 Series
• 2012-2016 F30 F31 F36 Sedan/Touring/Gran Coupe 335 including ix (N55 engine)

BMW 4 Series
• 2014-2016 F32 Coupe, F33 Convertible including ix (N55 engine)

Features & Benefits

• Increases Air Intake Efficiency
• Promotes Engine Longevity
• Non-Clogging Air/Oil Separation Triple Baffle
• Large 16mm+ inlet and outlet exceeds OEM PCV sizing
• Free Flow Solid No Restriction Design
• Retains factory fully closed loop PCV operation
• Large Intake/Outlet No Tapering Down

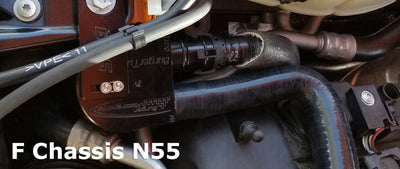

• Stealth Mounting on Cool Side of the Motor
• Anodized Black Aluminum
• N54 Model Mounts Out of Sight Under the Cowl
• Made in USA & Guaranteed for Life
• Non-Clogging, No Service Needed Air/Oil Separation Triple Baffle
• High flow to eliminate crankcase pressure caused by more restrictive designs
• Precision CNC Machined from Solid Blocks of High Grade Aluminum

Catch can dimensions and specs

Can dimensions with lid: 4.4" (111mm) Tall
Can diameter: 2.5" (63.7mm)
Lid length: Back to nozzle end: 4" (101mm)
Nozzle outer diameter: .75" (19.2mm)
Nozzle inner diameter: 0.669" (17mm)
